W03

Please select purchase platform x

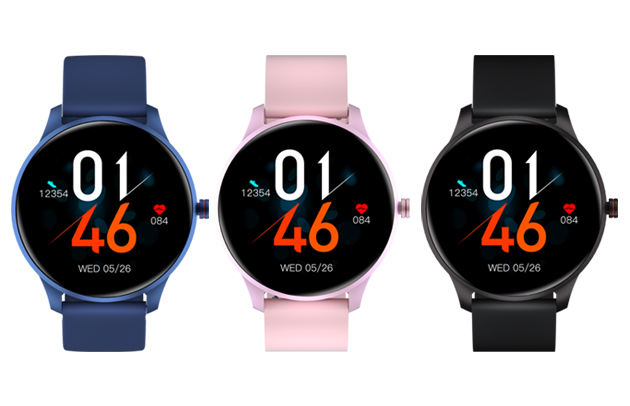

Appearance

Dimensions

Diameter: 43mm

Thickness: 10mm

Strap Width:19mm

Mechanical

Waterproof IP68
Screen size 1.28"
Screen type TFT-LCD, color screen
Screen cover Tempered glass
Strap material TPU hardness 70 degrees
Buckle TPU hardness 85 degrees
Tongue buckle Stainless Steel

Hardware

MCU Realtek8762CK, 160Kb RAM+128Mb ROM
IMU (acceleration + gyroscope) STK8321
PPG heart rate sensor VC11
Screen Resolution 240*240
Bluetooth BLE5.0
Bluetooth antenna module Wire

Power

Operating Voltage 3.7V
Battery capacity 210mAh
Battery type Lithium polymer battery
Charging method Magneto-suction charging
Charging time ≤ 2.5 hours

APP OS

iOS iOS 9.0+
Android Android5.0+

Function

Multi-language support 9 languages(China, English, German, Japanese, Spanish, Italian, French, Portuguese, Russian)
Basic functions Clock, date display (12/24 hour system, default 12 hour system)
Multi-dial OTA upgrade (Upgrade directly via the Bluetooth connection app)
Daily activity monitoring Heart rate (24-hour real-time heart rate monitoring)
Sleep (excluding short break): falling sleep time, wake up time, total sleep time.)
Steps (Monitor the number of steps per minute and record it every 10 minutes)
Calorie (Monitor calories per minute and record it every 10 minutes)
Distance (Monitor the distance per minute and record it every 10 minutes)
Sports functions walking (Exercise time, energy consumption, heart rate, pace, speed, steps, distance)
running (Exercise time, energy consumption, heart rate, pace, speed, steps, distance)
riding (Exercise time, energy consumption, heart rate, [ App launches the movement display: pace, speed, distance])
Climbing (Exercise time, energy expenditure, heart rate)
Yoga ( Exercise time, energy consumption)
Basketball (Exercise time, energy expenditure, heart rate)
Football (Exercise time, energy expenditure, heart rate)
Table tennis ( Exercise time, energy expenditure, heart rate )
Badminton (Exercise time, energy expenditure, heart rate )
Autonomous measurement Heart rate measurement (User self-measurement, single heart rate monitoring)
Notifications Calling Notification (Incoming call received, an alert is displayed; You can hung it up by watch.)
Stand-up reminder (This reminder appears when the user is sedentary more than an hour, reminding the user to stand up and do some exercise.)
SMS notification (The phone receives SMS message push anddisplay it to watch.)
App notification (Push notifications from other apps in watch by your choice)
Alarm reminder
Target reaching reminder (Show this alert when the sport goal is reached)
Low battery reminder (Show this alert when the battery power is low)
Heart rate too high alert (Show this alert when the heart rate is too high)
Other functions Stopwatch (The stopwatch is accurate to the nearest second (eg 59:59.99))
Timer (The timer can be set up to 23 hours, 59 minutes and 59 seconds.)
Firmware information (View device related information (firmware version, Bluetooth address, etc.))
Sports record
Reset function
Music control (Control your smartphone to play music.)
Gesture Lift the wrist (Lift the wrist to automatically brighten)
lay down (Put down the automatic shut down screen)

Package List:

Smart Watch

Charging Cable x1

User Manual x1
