Appearance

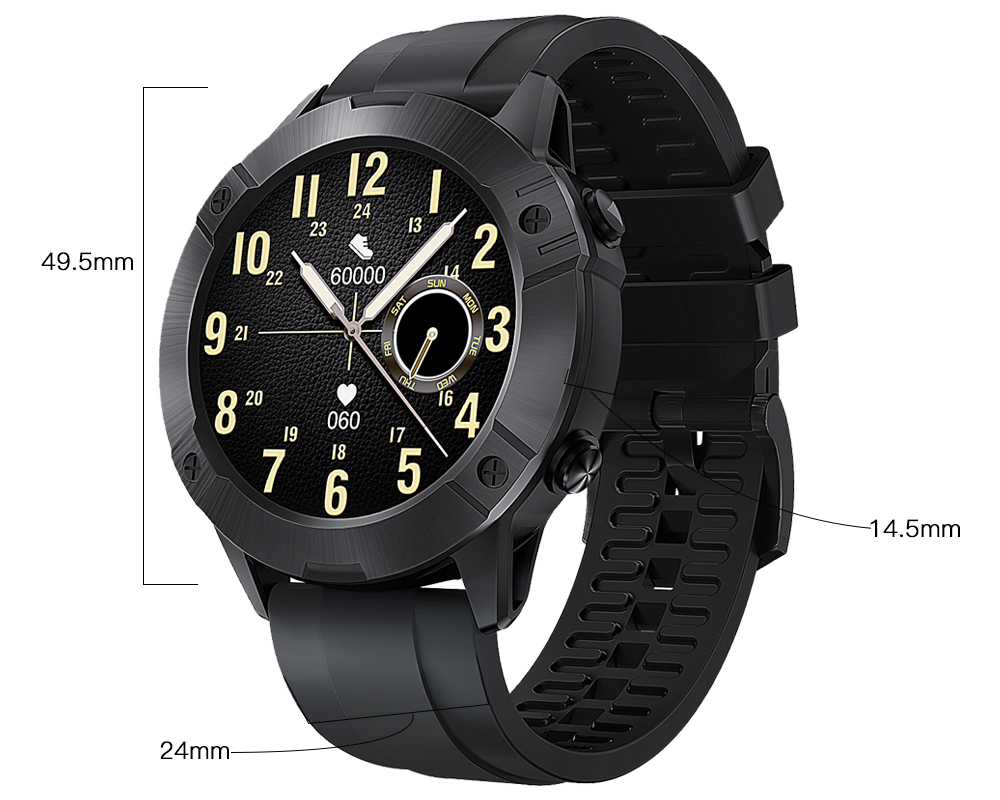

Dimensions

Diameter: 49.5mm

Thickness: 14.5mm

Strap Width:24mm

Mechanical

Waterproof 5ATM
Screen size 1.28"
Screen type TFT-LCD, color screen
Screen cover 1.8 High hardness glass cover
Strap material Silica gel hardness 60 degrees
Buckle Silica gel hardness 75 degrees
Tongue buckle Stainless steel oil pressure

Hardware

MCU RTL8762CK
IMU (acceleration + gyroscope) STK8321
PPG heart rate sensor VC32S
Screen Resolution 240*240
Bluetooth BLE5.0
Flash 128Mb
Bluetooth BLE5.0
Bluetooth antenna module FPC

Power

Operating Voltage 3.8V
Battery capacity 450mAh
Battery type Lithium polymer battery
Charging method Magneto-suction charging
Charging time ≤3 hours

APP OS

iOS iOS 9.0+
Android Android6.0+

Function

Multi-language support 15 languages(China, English, German, Japanese, Spanish, Italian, French, Portuguese, Russian)
Basic functions Clock, date display (12/24 hour system, default 12 hour system)
Multi-dial OTA upgrade (Upgrade directly via the Bluetooth connection app)
Daily activity monitoring Heart rate (24-hour real-time heart rate monitoring)
Sleep (excluding short break): falling sleep time, wake up time, total sleep time.)
Steps (Monitor the number of steps per minute and record it every 10 minutes)
Calorie (Monitor calories per minute and record it every 10 minutes)
Distance (Monitor the distance per minute and record it every 10 minutes)
Sports functions Running
walking
running
Rope Skipping
Climbing
Badminton
Table Tennis
Tennis
Yoga
Basketball
Soccer
Baseball
Football
Autonomous measurement Heart rate measurement (User self-measurement, single heart rate monitoring)
Notifications Calling Notification (Incoming call received, an alert is displayed; You can hung it up by watch.)
Stand-up reminder (This reminder appears when the user is sedentary more than an hour, reminding the user to stand up and do some exercise.)
SMS notification (The phone receives SMS message push anddisplay it to watch.)
App notification (Push notifications from other apps in watch by your choice)
Alarm reminder
Other functions Stopwatch (The stopwatch is accurate to the nearest second (eg 59:59.99))
Timer (The timer can be set up to 23 hours, 59 minutes and 59 seconds.)
Firmware information (View device related information (firmware version, Bluetooth address, etc.))
Sports record
Reset function
Music control (Control your smartphone to play music.)
Gesture Lift the wrist (Lift the wrist to automatically brighten)
lay down (Put down the automatic shut down screen)

Package List:

Smart Watch

Charging Cable x1

User Manual x1
